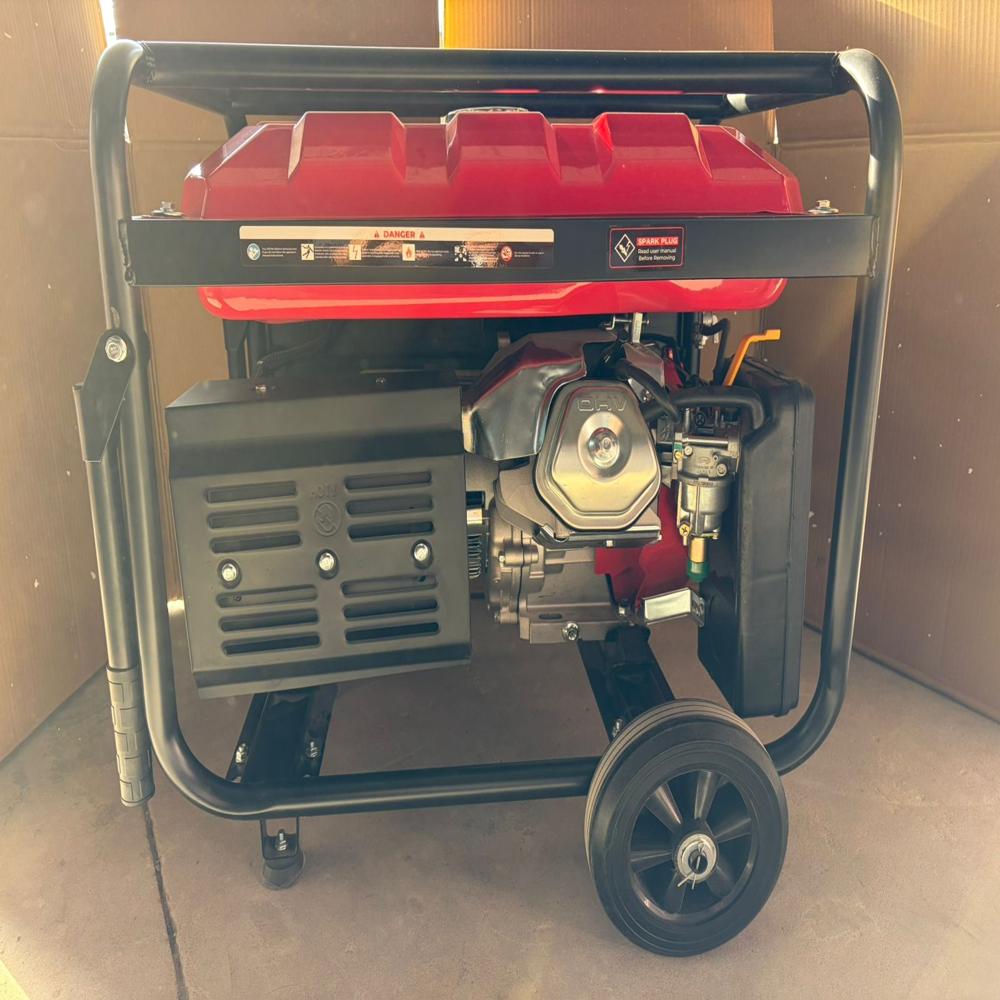

Dharmatech Generator 3 Kva

Name: Dharmatech Generator 3 Kva
Brand: DHARMATECH INDUSTRIES
Price: 36000.0 INR
Availability: InStock

Price 36000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Dharmatech Generator 3 Kva Specification

Noise Level
@7m: typically 68-72 dB(A)

Usage & Applications
Backup power supply, Outdoor Events, Small Construction Sites, Agriculture

Tool Type
Power Generator

Features
Portable, Durable, Wheels for mobility, Air cooled, Easy to operate

Shape
Rectangular with curved frame

Product Type
Generator

General Use
Portable Power Supply for Homes, Shops, Construction Sites

Capacity
3 KVA

Weight (kg)
50 Kilograms (kg)

Type
Portable Generator

Drive Type
Self-contained petrol engine drive

Power
3000 Watts (Max Output)

Power Source
Petrol/Gasoline

Transmission Type
Direct coupling

Engine Type
4 Stroke

Fuel Tank Capacity
5 Liter (L)

Engine Oil Capacity
0.6-1.1 Liters (approx.)

Start Method
Recoil (manual) start

Machine Speed
Engine Rated 3000-3600 RPM

Production Output
Max 3 KVA / 3000W

Material
Steel Frame, Metal Housing

Dimension (L*W*H)
Approx. 610mm x 460mm x 495mm

Color
Red with Black Frame

Overload Protection
Yes

Starter Switch
Manual (Recoil Pull)

Frame Material
Powder-coated steel

Rated Voltage
220V-240V AC

Operational Temperature Range
-10C to 40C

Fuel Consumption
Approx. 1.1 L/h (at half load)

Mobility
Integrated wheels and foldable handle

Running Time on Full Tank
Approx. 8-10 hours (at 50% load)

Safety
Circuit breaker, Low oil shutdown

Compliance
Meets IS/ISO standards

Cooling System
Air Cooled

Engine Displacement
196cc (approx.)

Insulation Class
B

Number of Outlets
2 (Standard 3-pin sockets)

Frequency
50 Hz

Alternator type
Brush/Brushless (as per model)

About Dharmatech Generator 3 Kva

SpecificationDetails Model GN-3500E Brand GeeNex Generator Type Single-Phase Petrol Generator Rated Power 2.8 kVA Maximum Power 3.0 kVA Voltage 220 V AC Engine Displacement 212 cc Starting System Self Start (Electric Start) Fuel Tank Capacity 16 Litres Fuel Consumption Approx. 1 L/hr Running Time Up to 11.5 hours Oil Capacity 0.6 Litres DC Output 12V / 8.3A Noise Level Less than 86.6 dB Weight

Reliable Portable Power for Versatile Applications

Engineered for dependability, the Dharmatech Generator 3 Kva serves as an ideal backup for homes, retail outlets, outdoor gatherings, and remote work sites. The sturdy steel-framed construction and efficient air-cooled engine ensure consistent performance in diverse environments, while the output of up to 3000 watts covers a wide range of electrical devices and appliances.

User-Friendly Design and Safety Features

With mobility in mind, this generator includes integrated wheels and a foldable handle for effortless transport. Its manual recoil start enables quick operation without the need for external batteries. Built-in safety measures like a circuit breaker, overload protection, and low oil shutdown safeguard both your equipment and the generator, offering peace of mind during extended use.

FAQ's of Dharmatech Generator 3 Kva:

Q: How do I start the Dharmatech Generator 3 Kva?

A: The generator features a manual recoil (pull) start system. To start, ensure the generator is on a level surface, check oil and fuel levels, switch the fuel tap to 'on,' and then pull the starter cord firmly. The engine should start within a few pulls.

Q: What can I power with this generator?

A: With a maximum output of 3000 watts (3 KVA) and two standard 3-pin outlets, this generator can run essential household appliances, power tools, lighting, and electronics. It is suitable for powering refrigerators, fans, computers, small pumps, or tools at construction sites, provided total load does not exceed the rated capacity.

Q: When and where is this generator best used?

A: This portable generator is ideal for emergency backup at home, powering shops during outages, outdoor parties, small construction jobs, agricultural work, or camping. Its compact design and wheels make it easy to move and use anywhere there is a steady, level surface.

Q: What is the typical running time on a full tank, and how is fuel consumed?

A: At 50% load, the Dharmatech Generator runs for approximately 8 to 10 hours on a full 5-liter tank. Fuel consumption is about 1.1 liters per hour at half load, making it efficient for extended operations when continuous power is required.

Q: How does the generator protect against overload and low oil levels?

A: Safety is enhanced with built-in overload protection (circuit breaker) and an automatic low oil shutdown feature, which prevents engine damage by stopping the generator if oil levels become too low.

Q: Is any special maintenance required for the generator?

A: Routine maintenance involves checking and topping up oil (capacity: 0.6-1.1 liters), cleaning the air filter, and ensuring the fuel tank and system are free from debris. It is recommended to operate the generator within its temperature range (-10C to 40C) and comply with IS/ISO operational standards.
